How to Install a Handrail on Stairs: A Complete DIY Step-by-Step Guide
Most people call a contractor for this but with the right kit and this guide, you'll have a code-compliant rail in an afternoon, with every measurement and spec explained.
If you've been putting off adding a handrail, this guide takes care of that. The CR Stair Handrail Kit ships with everything you need and goes together faster than most people expect.
Time: 2–3 hours. Difficulty: Beginner. Experience: No prior experience needed.
01 — Pick the Right Kit
The CR Stair Handrail Kit comes in five sizes, each matched to a specific stair run length. Your size is determined by the total horizontal distance of your staircase, not the number of steps you count by eye, and not a diagonal measurement.
| Kit | Steps | SKU | Total Horizontal Run |
|---|---|---|---|
| 1 & 2 Steps | 1–2 | CRHR1 | Up to 12" |
| 3 Steps | 3 | CRHR2 | 12.01"–24" |
| 4 Steps | 4 | CRHR3 | 24.01"–36" |
| 5 Steps | 5 | CRHR4 | 36.01"–48" |
| 6 Steps | 6 | CRHR5 | 48.01"–60" |
If your staircase is longer than 60 inches, you'll need to combine two or more kits. Section 03 covers exactly how to measure so you buy the right size the first time.

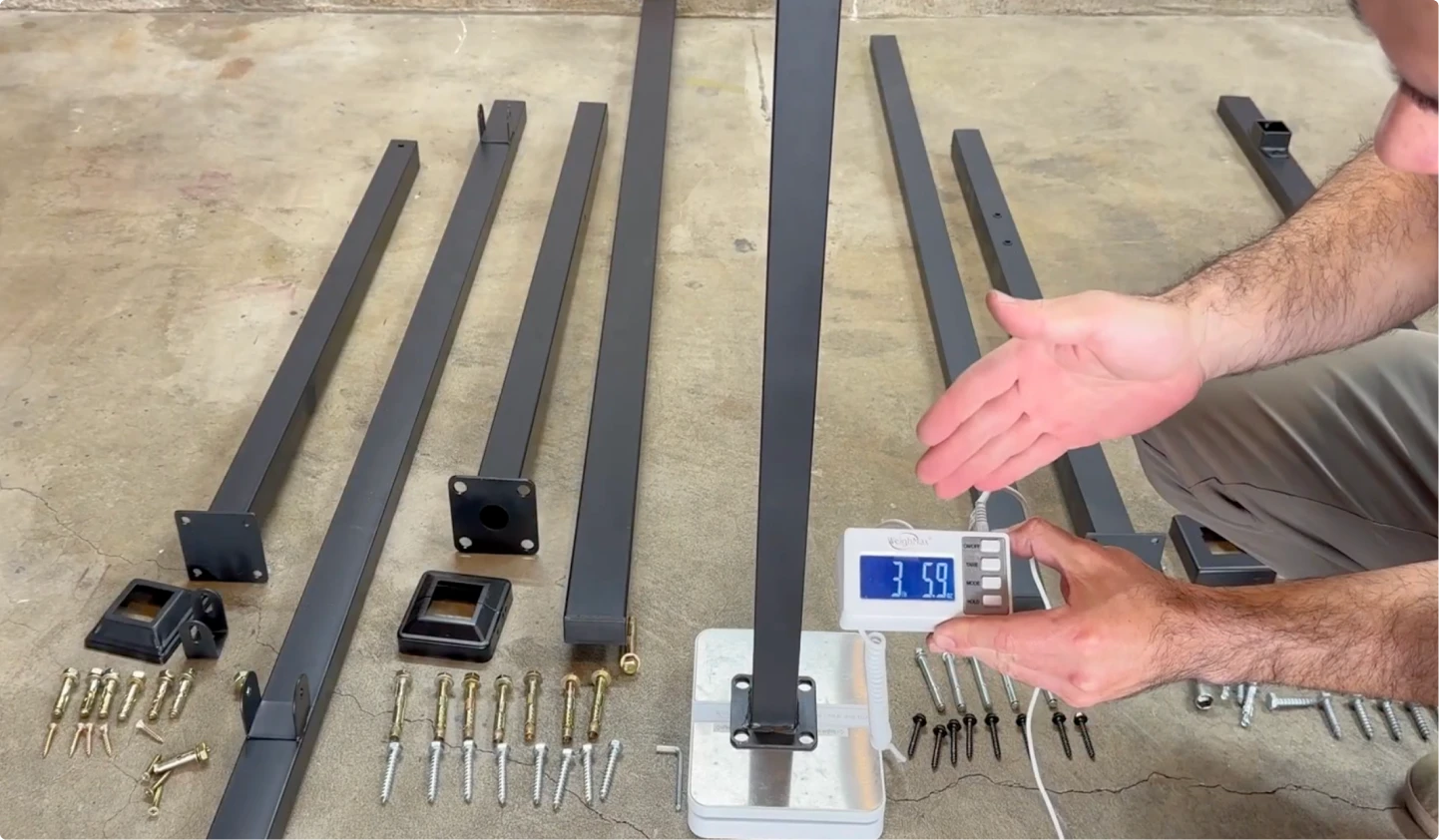

02 — What's in the Box
Before you do anything, lay every component out and check it against the list below. Two minutes now saves you from discovering a missing piece halfway through the job.
03 — Measure Your Staircase
Getting the measurement right before you order is the most important step in this whole process. The wrong measurement means the wrong kit, and that means a return.
Measure carefully and order once. Every returned item arrives unsellable. Since it can't go back on the shelf, it goes to a landfill. That's a loss for us and unnecessary waste for everyone. Read our return policy in detail.
Steps Without a Ledge
Measure the depth of each step from front to back, starting from the edge of the first step all the way to the edge of the top landing. Add each measurement together.
Example: 4 steps, each 11" deep = 44" total run → order the 5 Steps kit (CRHR4).
Steps With a Ledge
Look at your stairs from the side. If the front of each step hangs out slightly over the one below it, like a small shelf, your steps have a ledge. Follow these steps instead:
- Measure the full depth of the first step, ledge included.
- Measure the depth of the second step.
- Subtract the ledge portion from the first step's measurement to get its true run.
- Repeat for all remaining steps.
- Add the first step's full depth to the sum of all remaining runs.
Example: First step is 12" deep, remaining 3 steps are 11" each = 12" + 11" + 11" + 11" = 45" total run → order the 5 Steps kit (CRHR4).
Don't just count steps. Two staircases can both have 4 steps but very different total runs depending on step depth. Always measure.
The Stair Handrail Wall Extension lets you connect your stair handrail to a horizontal run at the top of the stairs — sold separately.
Check Your Top Landing Clearance
Before ordering, confirm your top landing has at least 8 inches of free space. That's the room the top rail needs to fit end-to-end without running into a wall or door.
If You Don't Have Enough Clearance
- Use the Wall Extension kit to terminate the rail into the wall instead of extending horizontally.
- Use a Wall Top Rail Connector to end the rail flush against the wall.
- Contact our team — we'll recommend the right combination for your exact layout.
04 — Assemble the Handrail
Here's what makes the CR kit different from most: you assemble it completely on the ground before installation. No holding parts in position on a sloped staircase while drilling as everything gets built flat, then carried up.
The top and bottom posts are not interchangeable. Getting this wrong means the rail won't sit at the correct angle on your stairs.
Press one post cap onto the top of each post. The cap protects the post end and gives a finished look.
Attach the SafeLox™ rail brackets to both posts. These hold the middle rail in place. The enclosed bracket design keeps water out and leaves no exposed edges.
Attach the top rail brackets to the posts. These will hold the top rail at the correct height and angle once the kit is on the stairs.
Press the end caps onto the open ends of the top rail and middle rail before going further.
With brackets on both posts, lay the full assembly flat. Loosely connect the top rail and middle rail to both posts. Do not tighten anything yet.
Do this on a clean, flat surface like a garage floor or driveway. Having someone hold the posts while you connect the rails makes this step faster.
05 — Mark and Drill the Post Holes
Set the assembled handrail on the stairs in its final position. Bottom post at the base, top post at the top landing. Hold the rail at the correct height and check that it sits naturally with the angle of the stairs.
With the handrail in position, use a pencil or marker to mark the floor through the hole locations in each post's base plate. Mark both posts before moving the kit.
Remove the handrail and drill straight down at your marked locations using a drill bit sized for the included lag screws.
Drill straight down, not at an angle. On a sloped staircase, the instinct is to drill perpendicular to the step surface rather than truly vertical. Use a level on your drill if needed.
06 — Secure the Posts
Carry the assembled handrail back to the staircase and align the base plate holes with your drilled holes.
Drive the included lag screws through the base plate of each post and into the floor. Drive each screw until the base plate sits completely flush. No gap between the plate and the floor.
Check the rail angle before fully tightening. Step back and look at the handrail from the side. It should follow the angle of your stairs cleanly. If something looks off, adjust now.
07 — Tighten All Joints
With both posts secured, go through the full assembly and tighten every connection. Use the included self-drill screws to fully secure the top rail and middle rail to their brackets. Work from the bottom post to the top.
When you're done, give the rail a firm push and pull at multiple points. Nothing should move. If any section shifts, find the loose connection and tighten it.
If you're connecting two kits for a longer staircase, or joining the stair rail to a horizontal handrail at the top, you'll need a connector. We carry straight, corner, bend-adjustable, and wall termination connectors. Shop Connectors.
08 — Code Compliance Check
Run through this checklist before calling the job done. If a building inspector is coming, having these verified in advance makes the whole process faster.
The CR Stair Handrail Kit is IBC compliant and carries a 10-year warranty. If your inspector requests a product compliance document, it can be downloaded from your order confirmation page.
